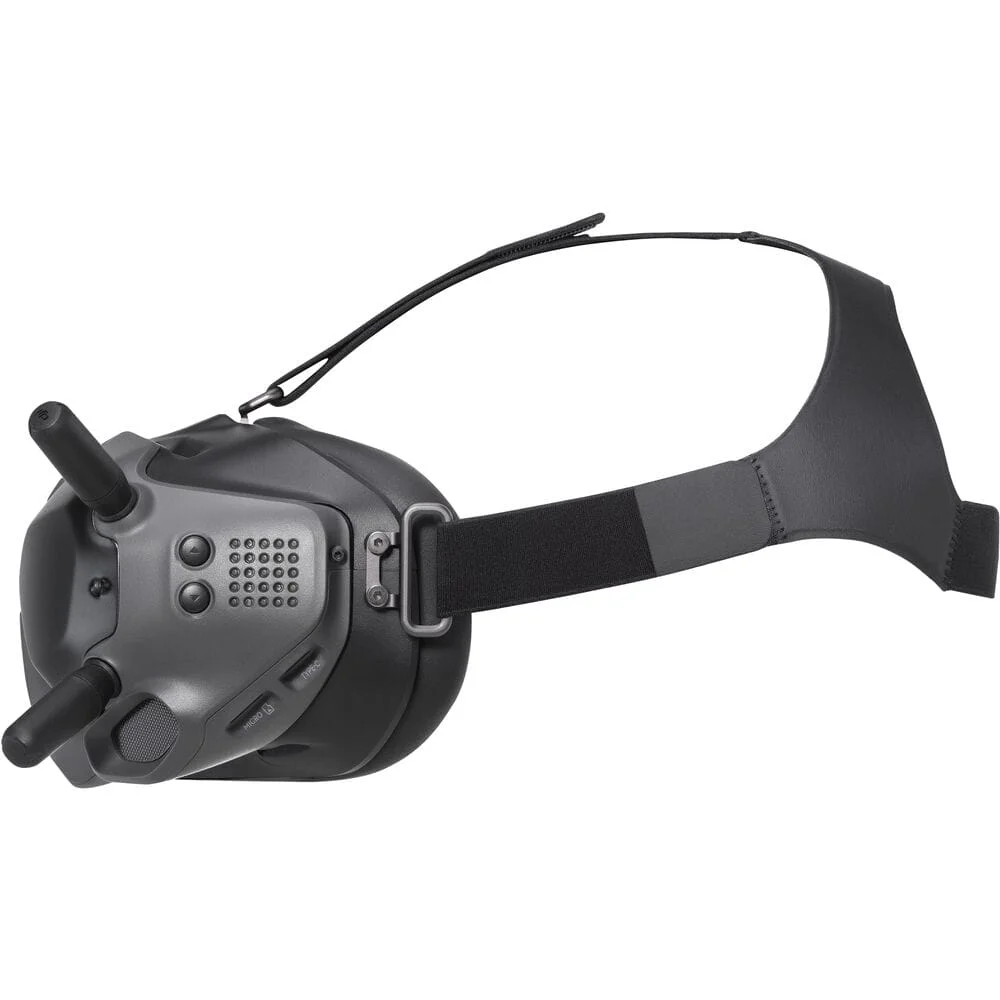

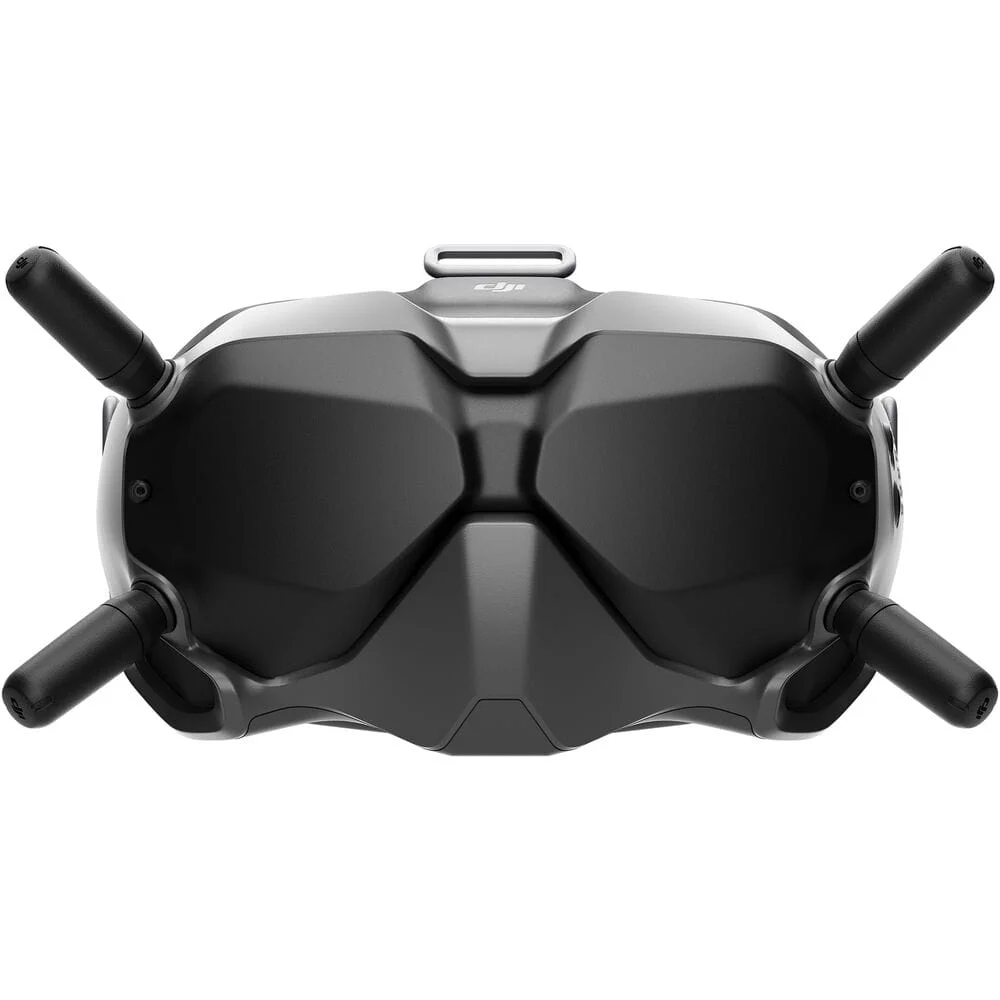

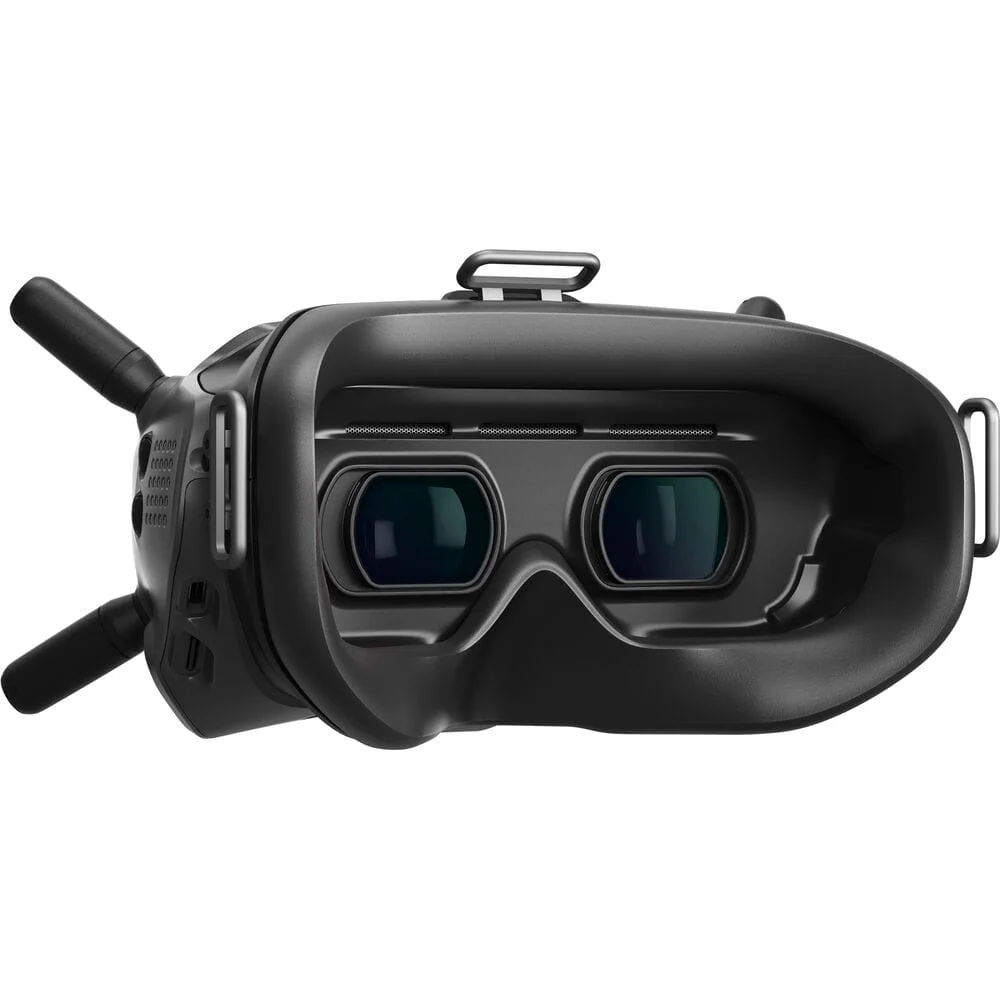

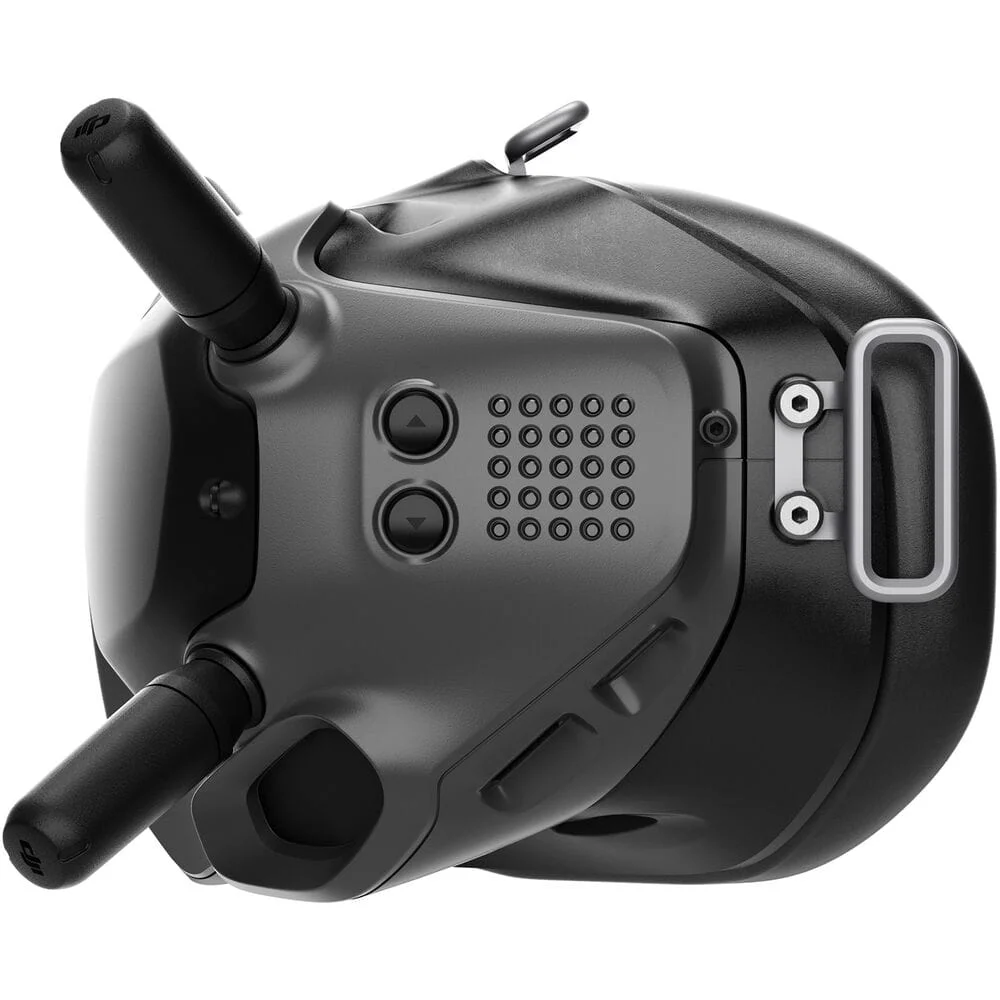

DJI FPV Goggles V2

The DJI FPV Goggles V2 unlock the true potential of the DJI FPV Drone. The goggles feature high definition, low latency, long-distance transmission, and strong anti-interference capabilities. The DJI FPV Goggles Battery in the box supports up to 110 minutes of flight when fully charged.

DJI FPV Goggles V2 Key Features;

  • Compatible with FPV Remote Controller 2
  • Live View Mode – 810p/120fps in Low-Latency Mode
  • Live View Mode – 810p/60fps in High-Quality Mode
  • Up to 4km of range with dual 2″ displays
  • Vital 2.4GHz frequency support
  • Screen refresh rate of 144Hz
  • Adjustable FOV from 30 to 54o
  • Supports MP4, MOV and MKV
  • Capture live video direct to an additional microSD
  • Use alongside the DJI FPV Remote Controller to utilise the Tx System
  • Comfortable design with built-in foam padding
  1. DJI FPV Goggles V2
  2. FPV Goggles LiPo Battery
  3. USB Type-C Power Cable
  4. 4 x Dual Band Antenna
  5. Headband
  6. Sleeve
  7. Limited 1-Year Warranty

DJI FPV GOGGLES V2 Specs

Screens Size: 2 x 2″ / 5.1 cm
Screen Resolution: 1440 x 810 (Each)
Refresh Rate: 144 Hz
FOV: 30 to 54°
Image Size: 50 to 100%
Interpupillar Distance Range: 2.3 to 2.8″ / 58 to 70 mm
Frequency 2.4 GHz: 2.400 to 2.4835 GHz
5.8 GHz: 5.725 to 5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: 2.400 to 2.4835 GHz
2.4 GHz: (FCC/MIC) ≤28.5 dBm, (CE) ≤20 dBm, (SRRC) ≤20 dBm, and (MIC) ≤20 dBm
5.8 GHz: 5.725 to 5.850 GHz
5.8 GHz: (FCC/MIC) ≤31.5 dBm, (CE) ≤14 dBm, and (SRRC) ≤19 dBm
Live View Low-Latency Mode: 810p120
High-Quality Mode: 810p60
Video Formats Record: MP4 (H.264)
Play: MP4, MOV, MKV (Video: H.264; Audio: AAC-LC, AAC-HE, AC-3, MP3)
Memory Card microSD (Up to 256 GB)
Battery Capacity: 1800 mAh
Voltage: 9 V (Max)
Type: LiPo 2S
Charging Temperature: 32 to 113°F / 0 to 45°C
Energy: 18 Wh
Max Charging Power: 10 W
Battery Life: Approximately 110 Minutes, at Max Brightness in 77°F / 25°C Environment
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions With Antennas: 8 x 5 x 4.3″ / 20.2 x 12.6 x 11 cm
Without Antennas: 7.2 x 4.8 x 4.3″ / 18.4 x 12.2 x 11 cm
Weight With Headband & Antennas: 14.8 oz / 420 g
Packaging Info
Package Weight 1.98 lb
Box Dimensions (LxWxH) 7.9 x 6.7 x 4.8″
