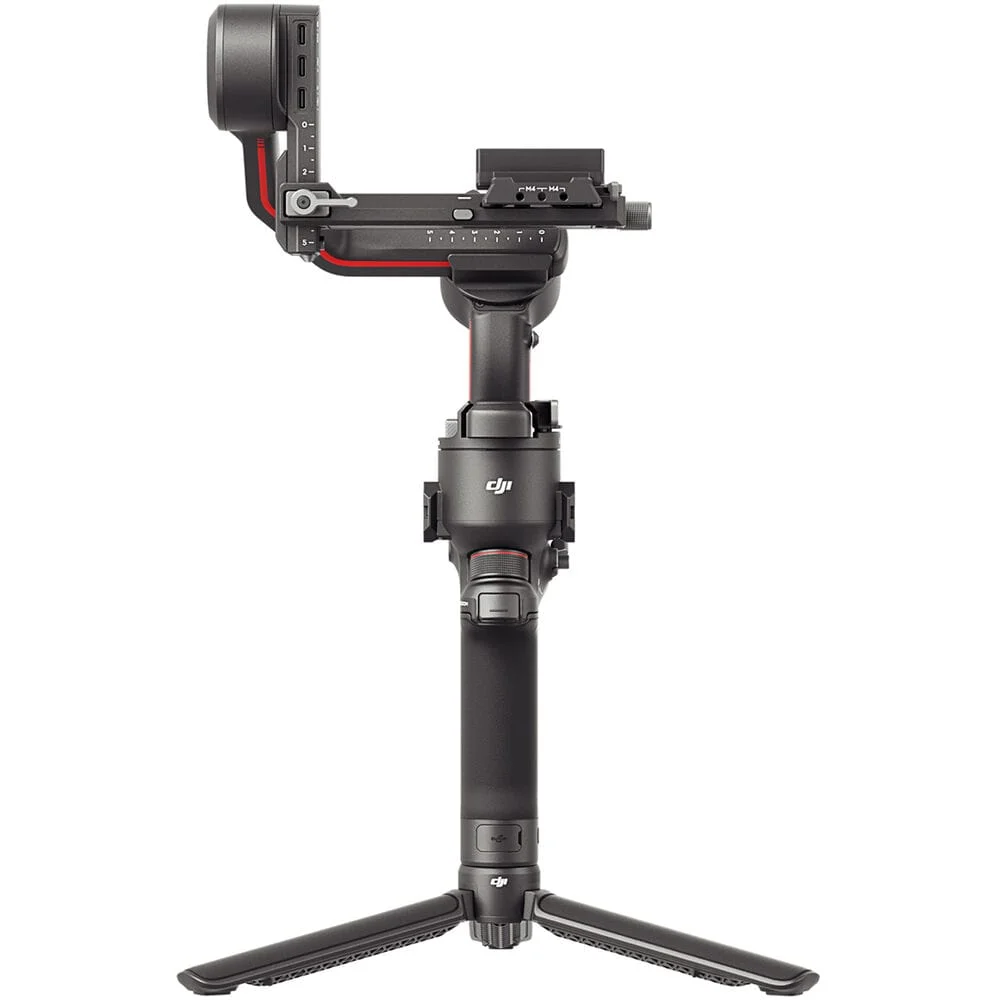

DJI RS 3 Pro Combo Gimbal Stabilizer

The RS 3 Pro is the latest gimbal from DJI and has been designed with the professional videographer and filmmaker in mind. Capable of supporting and balancing payloads at up to 4.5 kg/10 lbs along with Dual-Mode Bluetooth technology, Instant Mode Switching, a large and a built-in 1.8-inch OLED full-colour touchscreen, the DJI RS 3 Pro leaves nothing out of reach.

The DJI RS 3 Pro Combo Kit is also available with extra accessories.

Design and Build

The DJI RS 3 Pro weighs in at a mere 1.5 kg/3.3 lbs*, while being able to support cameras up to 4.5 kg/10 lbs. The gimbal features extended carbon fibre axis arms that allow for greater balancing space so that you can use larger, professional cameras.

The RS 3 Pro features a new Extended Lower Quick-Release Plate** for stable camera mounting, as well as lens support, and a fine-tuning knob that allows you to adjust the balance of the camera with ease.

The components have been Teflon-coated to produce less friction and lower resistance even when mounting heavy cameras.

*including gimbal, battery grip, and dual-layered quick-release plates

**Only available with combo purchase.

Automated Axis Locks

The Rs 3 Pro is easy to set up. You can switch the gimbal on and off by simply pressing and holding the power button and you can enter Sleep Mode by pressing the power button once so that the axes automatically lock.

Wireless Shutter Control

The RS 3 Pro features Dual-Mode Bluetooth technology for efficient and reliable wireless shutter control.* Once you have paired the camera and gimbal via Bluetooth you can control video and photo shooting by simply pressing the record button on the RS 3 Pro. The camera and RS 3 Pro will reconnect automatically the next time you use them so you don’t have to set them up every time.

*Full camera compatibility list here >

Instant Mode Switching

You can switch between Pan follow, Pan and Tilt follow, and FPV mode with ease thanks to the new Mode Switch. You can also customise the FPV mode to 3D Roll 360, Portrait, or Custom so that you can adjust your equipment and get started fast.

Built-in 1.8-inch OLED Full-colour Touchscreen

The RS 3 Pro features a built-in 1.8-inch OLED full-colour touchscreen which is 28% larger than the RS 2. This makes it even easier to set parameters, check shooting status, and framing.*  The OLED screen is also brighter for better outdoor viewing and uses less power than the RS 2 version.

*Required for use with the LiDAR Range Finder (RS) or Ronin Image Transmitter.

SuperSmooth Results Every Time

The Rs 3 Pro uses the third generation of RS stabilisation algorithms which delivers a 20% increase in stability over the RS 2. This allows you to achieve even greater results when shooting low-angle shots, running scenarios, or switching between high and low positions.

The stabiliser also features a SuperSmooth mode that increases motor torque to even further enhance stabilisation.

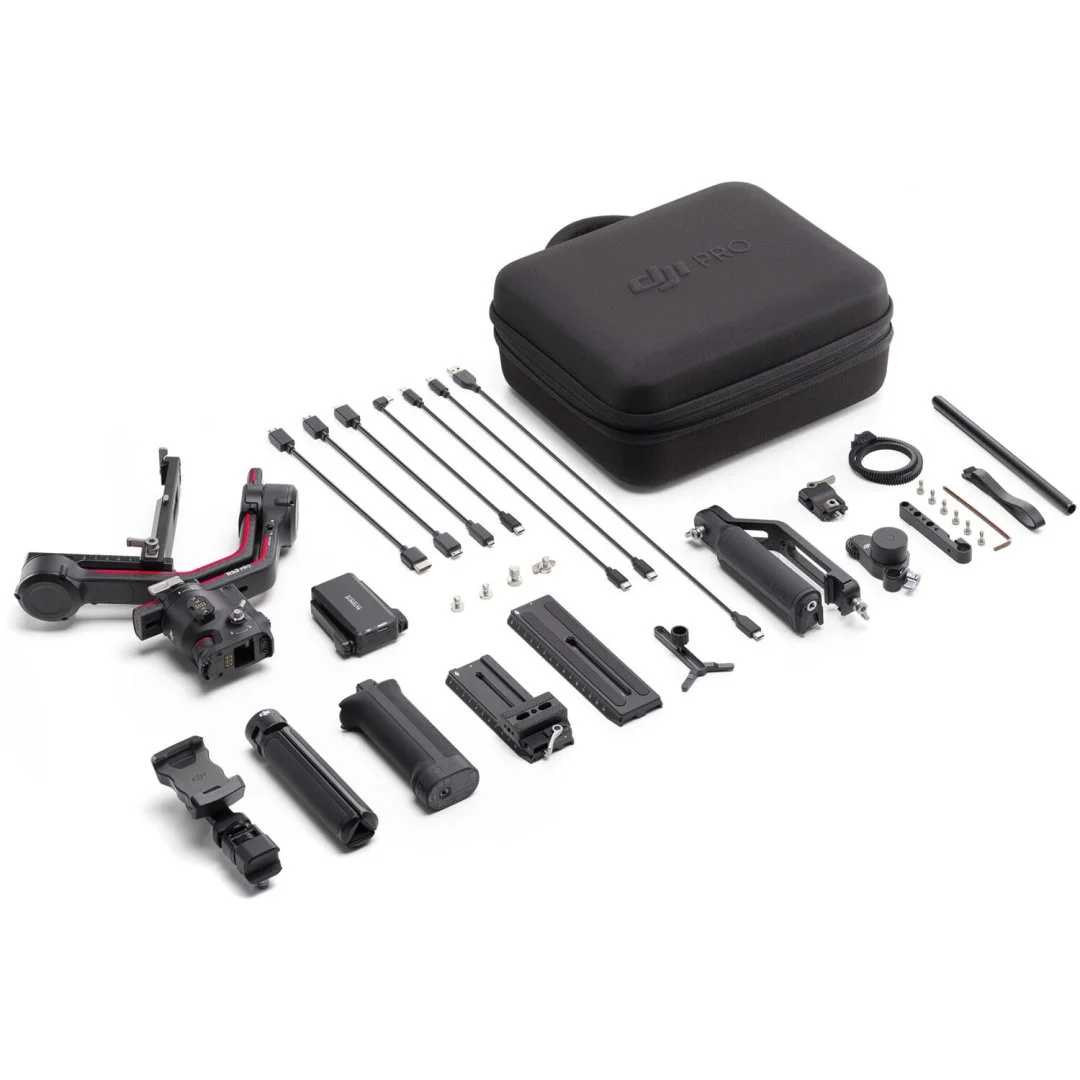

  1. DJI RS 3 Pro Gimbal Stabilizer Combo
  2. DJI Ronin BG30 Grip for RS 2 & RS 3 Pro Gimbals
  3. Lens Support
  4. Extended Grip/Tripod
  5. Quick Release Plate (Arca-Type/Manfrotto)
  6. Lower Extended Quick Release Plate
  7. DJI Briefcase Handle for RS Series
  8. DJI Ronin RavenEye Image Transmission System for RS 2 & RSC 2
  9. DJI RS Focus Motor (2022)
  10. Focus Motor Rod Mount Kit Combo
  11. Focus Gear Strip
  12. Phone Holder
  13. USB Power Cable (7.9″)
  14. USB Type-C Charging Cable (15.7″)
  15. USB Type-C Multi-Control Cable (11.8″)
  16. Mini-HDMI to HDMI Cable (7.9″)
  17. Mini-HDMI to Mini-HDMI Cable (7.9″)
  18. Mini-HDMI to Micro-HDMI Cable (7.9″)
  19. Carry Case
  20. Screw Kit
  21. 3 x Hook-and-Loop Strap

DJI RS 3 Pro Specs

Grip Design Single Handgrip
Gimbal
Load Capacity 9.9 lb / 4.5 kg
Number of Axes 3-Axis (Pitch, Roll, Yaw)
Rotation Range Yaw (Pan): 360°
Pitch (Tilt): -112 to 214°
Roll: -95 to 240°
Follow Speed Pan: 360°/s
Tilt: 360°/s
Roll: 360°/s
Compatibility
Camera Control On Compatible Models
Camera Mounting Screw 1 x 1/4″-20 Male
Connectivity
Inputs/Outputs 3 x USB Type-C (Control) Output
1 x USB Type-C (Power)
Wireless Frequency 2.4 GHz (2.4 – 2.484)
Wireless Protocol Bluetooth 5.0
Battery
Battery Type 1 x Built-In
Battery Capacity 1950 mAh / 30 Wh
Battery Runtime 12 Hours
Battery Charging Time 1.5 Hours
Battery Chemistry Lithium-Ion Polymer (LiPo)
Voltage 15.4 VDC
Environmental
Operating Temperature -4 to 113°F / -20 to 45°C
General
Display Type Fixed Touchscreen OLED
Materials Carbon Fiber
Mounting 1 x 1/4″-20 Female
1 x Cold Shoe Mount
Dimensions 16.3 x 8.6 x 7.7″ / 415 x 218 x 195 mm
10.9 x 10.6 x 2.7″ / 276 x 268 x 68 mm (Folded)
Weight 3.3 lb / 1497 g
