DJI Tranmission Combo

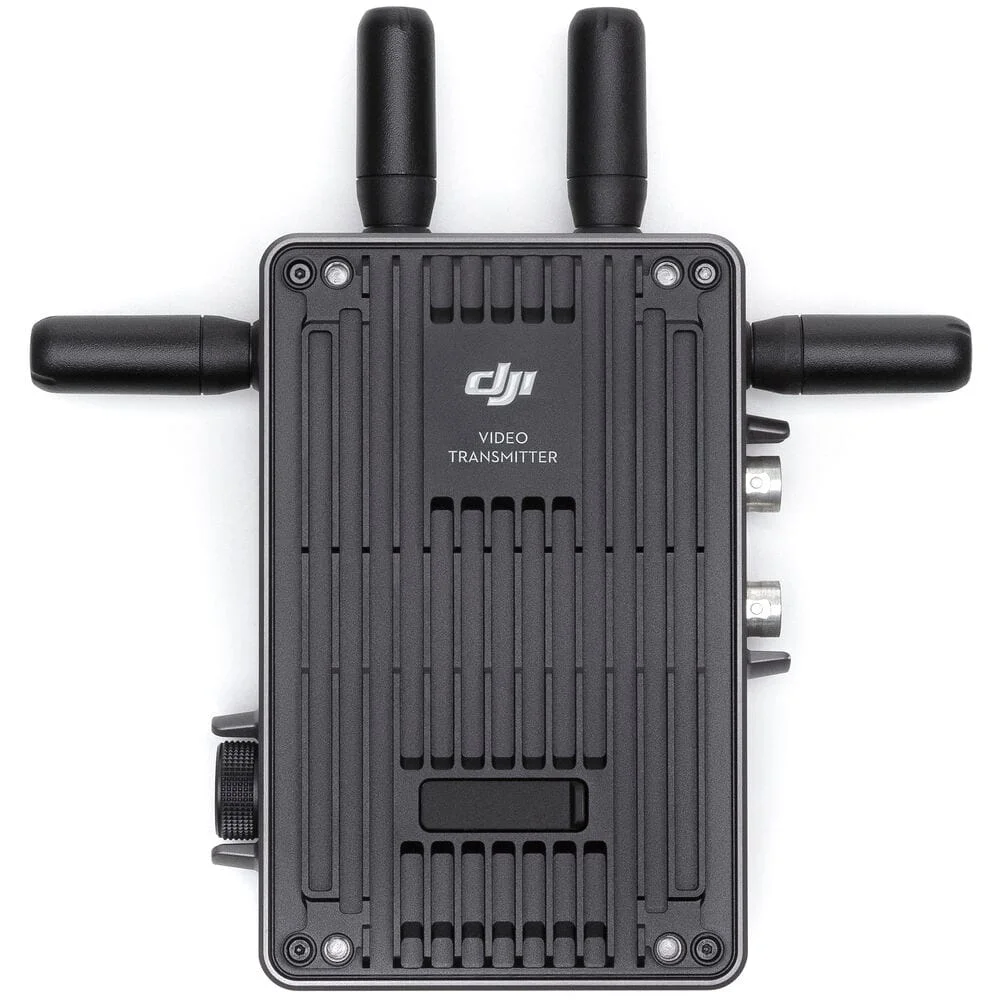

DJI has designed their new DJI Video Transmitter in order to deliver an integrated solution, combining a video receiver, monitor, controller and recorder in one easy set-up. Featuring an amazing 6km/20,000ft on-ground transmission distance the DJI Video Transmitter offers crews on large sets a fantastic remote visual and audio monitoring experience. The DJI Video transmitter has been developed for integration with Ronin series products and DJI Master Wheels. Pair with the DJI High-Bright Remote Monitor for an efficient workflow.

Long-Distance HD Live Feed

Developed with the O3 Pro Video transmission technology, the DJI Video Transmitter is able to achieve up to 6km/20,000ft of transmission distance. The technology allows transmissions at 1080p/60fps at a max bit rate of 50Mbps, along with live audio monitoring at 16-bit 48 kHz.

End-to-End Ultra-Low Latency

Designed with the same chip solution as Ronin 4D, the DJI video transmitter and receiver have been explicitly optimized. Every link provides end-to-end ultra-low transmission latency. Making it ideal for use with cinema cameras like ALEXA Mini LF.

Up to 23 channel options

Thanks to the integration of the o3 Pro technology, DFS bands are added on top of the traditional 2.4 GHz and 5,8 GHz frequency bands. This provided a larger range of channel options, offering up to 23 options. Making it brilliant for professional crews, allowing for more compliant and interference-free transmission channels.

Seamless Auto frequency Hopping

Supporting triple-band automatic frequency hopping, the DJI Video Transmitter automatically scans the electromagnetic environment, looking for the best wireless channel. A built-in frequency sweeper lets you manually select the optimal channel. This helps to reduce the interference between devices.

Enhanced Transmitter signal

Mount DJI’s High-Gain antennas to boost the range of the DJI Video Transmitter by 40%, this extended range is fantastic for large-scale productions and film sets.

Two transmission modes

The DJI Video Transmitter allows the DJI High-Bright Remote Monitor to support one transmitter with multiple receivers for both video and audio feeds. Allowing for two transmission modes Control mode and Broadcast mode.

Control mode

Control mode delivers optimal transmission performance, this allows you to monitor from two receivers simultaneously, while the Ronin 2, RS 3 Pro and camera focus can be controlled remotely.

Broadcast mode

A larger crew, with multiple teams and departments, may require more access to a broad range of channels. Enabling Broadcast mode on top of Control mode allows access to an unlimited number of receivers.

Smooth, coordinated transmission

DJI’s Video Transmitter can operate with 20 or more transmitters sending signals to 20 or more monitors simultaneously. This allows for a smooth and coordinated transmission experience, this is difficult to achieve with other more traditional setups.

Integrated Design

DJI’s transmission system has been designed to integrate a DJI High-Bright monitor with a built-in receiver. This allows for maximum portability and an efficient setup, enabling you to set up and get started quickly.

Built-in image processing chip

A built-in image processing chip can be found within the remote monitor, this chip has also been used on the Ronin 4D. Because of this feature, you have access to a plethora of additional features as well as monitoring for integrated and efficient receiving, monitoring, control and recording.

Wide-gamut touchscreen

Pairing the DJI Video transmitter unit with the DJI High-Bright Remote Monitor enables optimal high-quality performance. Equipped with a 7-inch wide gamut touchscreen, a brightness of up to 1,500 nits and a 1920×1200 resolution. Providing you with a fantastically clear touch screen display. The screen display itself has a non-intrusive interface, showing details such as shooting parameters for seamless monitoring. As standard the remote monitor comes with a tempered glass screen protector and a professional monitor hood, ensuring that the colours seen on the screen are rich and true-to-life in all lighting conditions.

Independent recording and playback

A MicroSD card slot can be found on the High-Bright Remote Monitor, record and playback a 1080p/60fps H.264 live feed while having access to video timecodes. Fantastic for editing proxies while still on set.

Built-in motion controller

With a built-in gyroscopic sensor, the high-bright remote monitor can act as a standalone motion controller for the Ronin 2 or RS 3 Pro based on your natural hand motions, without needing additional accessories. Achieve more complex camera movements based that you might not be able to achieve by other means. This can be especially useful if working from a moving vehicle or with a jib.

Compatible with Ronin 4D Hand Grips

DJI have developed their DJI Ronin 4D Hand Grips(sold separately) for use with the DJI High-Bright Remote monitor. This addition allows you to remotely control the Ronin 2 or RS 3 Pro. Simply add on to the High-Bright Remote Monitors expansion-protective frame.

Easy-to-use controls

The Ronin 4D Hand Grips have been designed with easy-to-use ergonomic controls. Simply use the joystick to control the Ronin 2 or RS 3 Pro gimbal. Use the focus wheel to control focusing and adjust the camera parameters, such as aperture, shutter and ISO.

Compatible with DJI Master Wheels and DJI Force Pro

Thanks to the use of the remote monitor, when used with either the DJI Master Wheels or DJI Force Pro (sold separately) you can achieve a more advanced gimbal control when using the Ronin 2 or RS 3 Pro. The equipment will then transmit control signals directly through DJI transmission. In action to advance gimbal control, this also boosts the transmission performance and enhances signal range, stability and anti-interference capabilities.

Direct power supply by gimbal

Power the DJI Video Transmitter directly through the Ronin 2 or RS 3 Pro gimbal, simply attach it to the cold shoe mount on the bottom of the gimbal and power it without any additional batteries.

Multiple power Solutions

The Video Transmitter is compatible with the DJI WB37 Battery and can be used with the NP-F Battery Adapter, allowing you to use universal batteries. V-mount battery adapters can be mounted to the front or rear of the video transmitter via pogo pins on both the front and back of the video transmitter. This allows you to move freely, around a set.

P-TAP to DC-IN power option

Continuous power can be supplied to the video transmitter via a P-TAP to DC-in power cable. Providing a steady secure stream of power can be ideal for more stationary situations, allowing for a more dependable power supply.

DJI Transmission Combo Key features:

  • Incorporates O3 Pro video transmission technology
  • Ultra-low transmission latency
  • 6KM/20,000ft on-ground transmission distance
  • Directly powered via Gimbal
  • Compatible with DJI WB37 Battery and NP-F Battery Adapter
  • Supports triple-band automatic frequency hopping
  • Built-in frequency sweeper
  • Supports DFS frequency band
  • AES 256-bit encryption algorithm
  • Wide-Gamut Touchscreen
  • Independent Recording ad Playback
  • Built-in Motion Controller

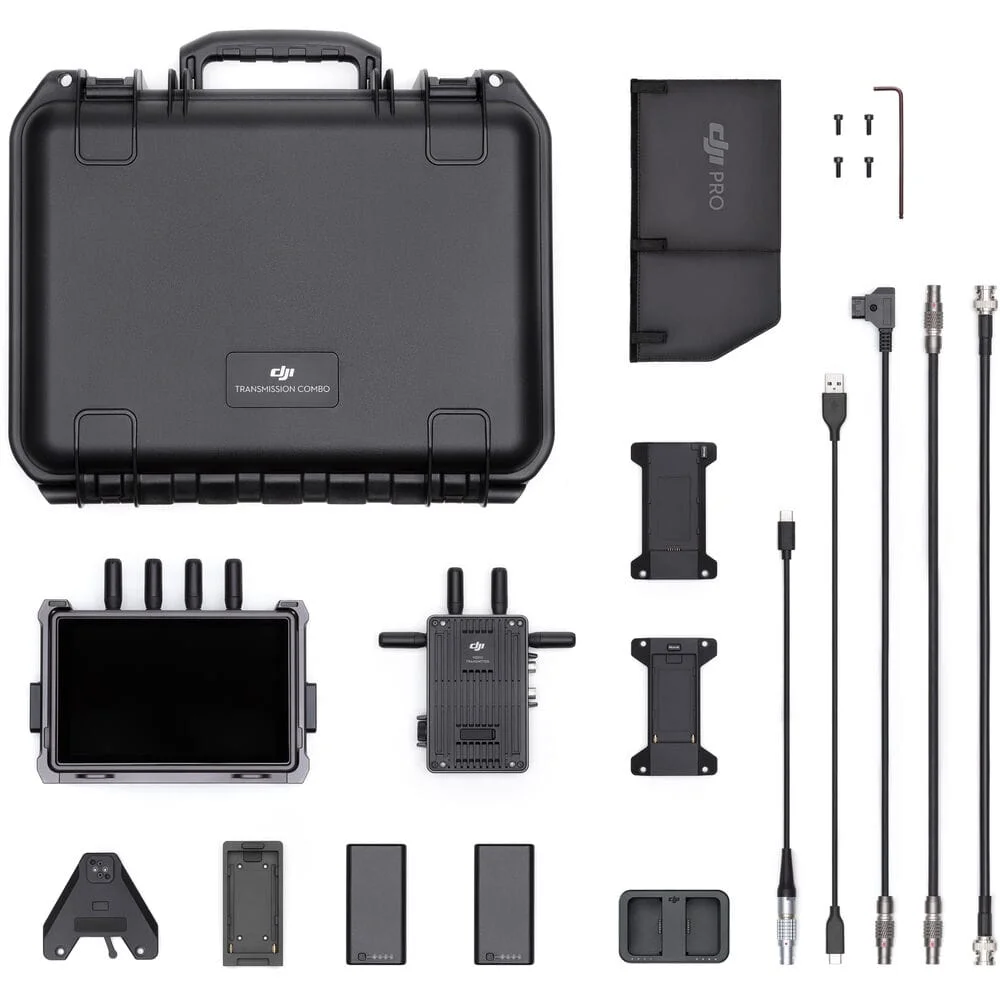

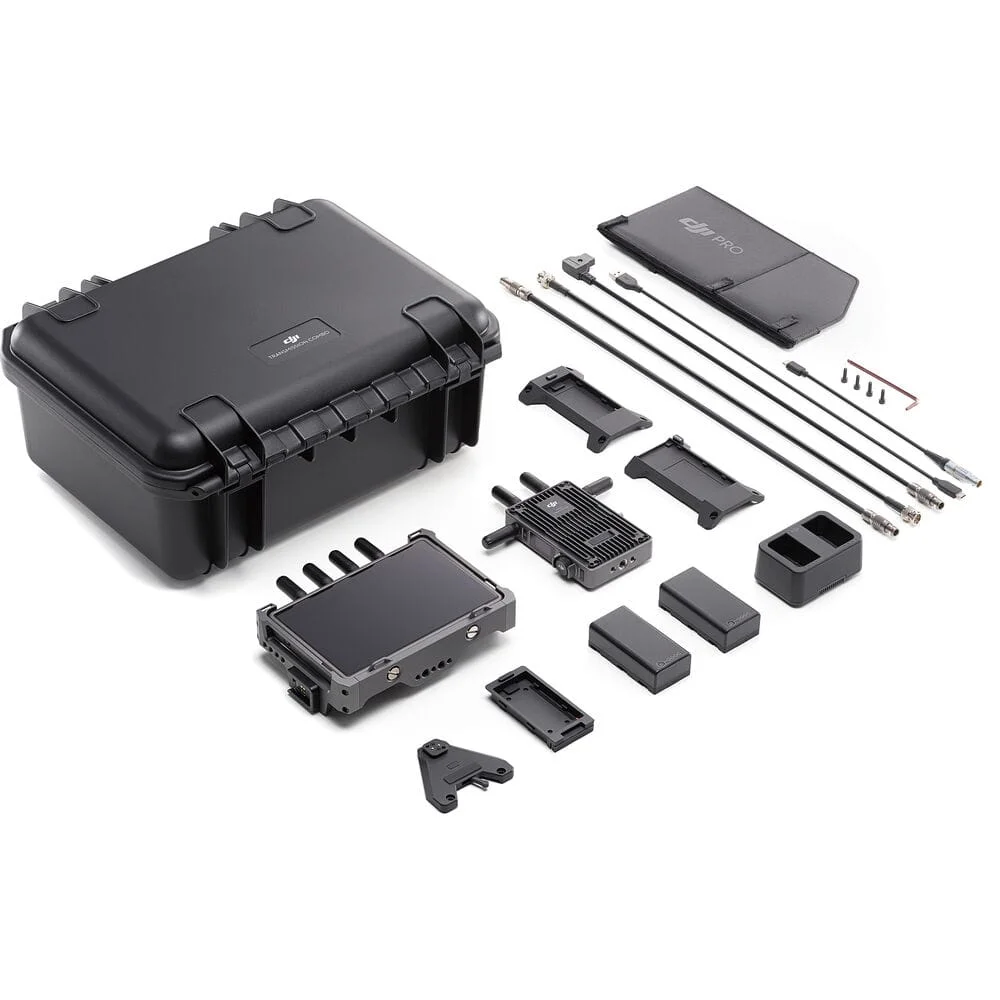

  1. DJI Transmission Combo

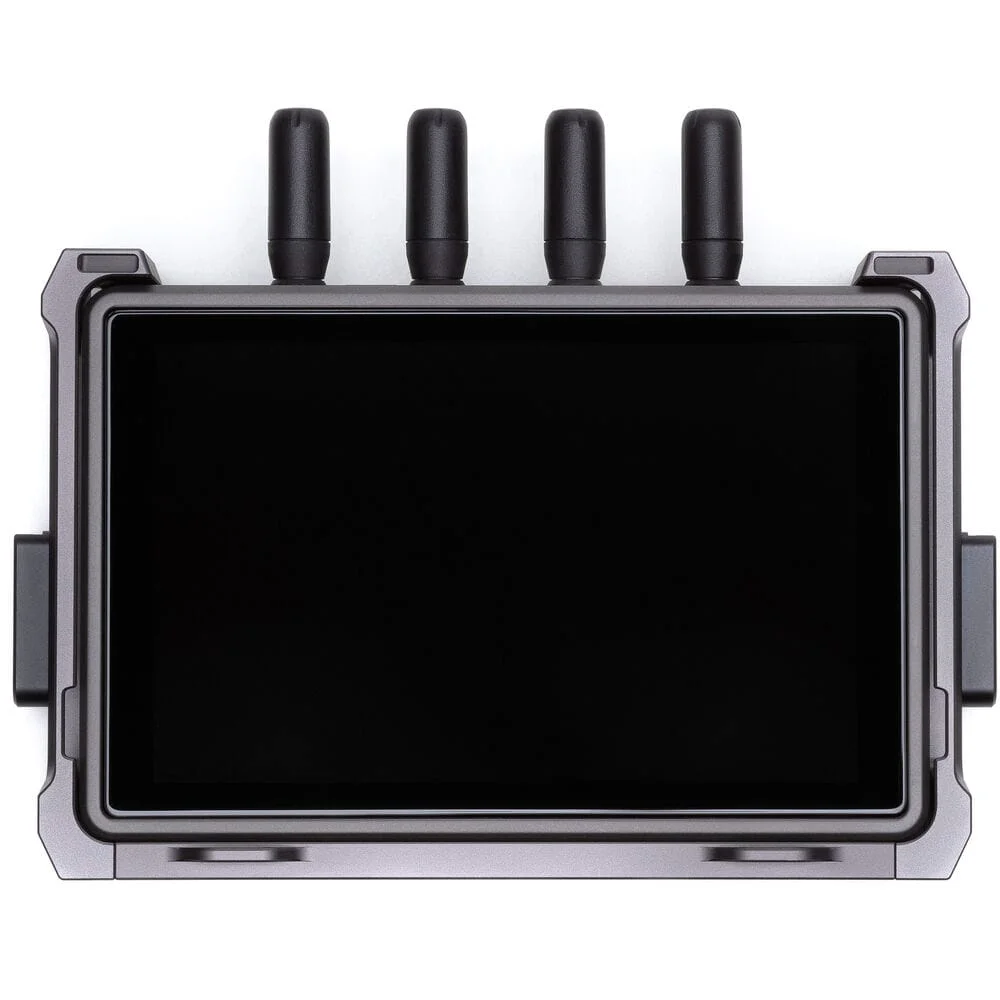

  2. High-Bright Remote RX Monitor

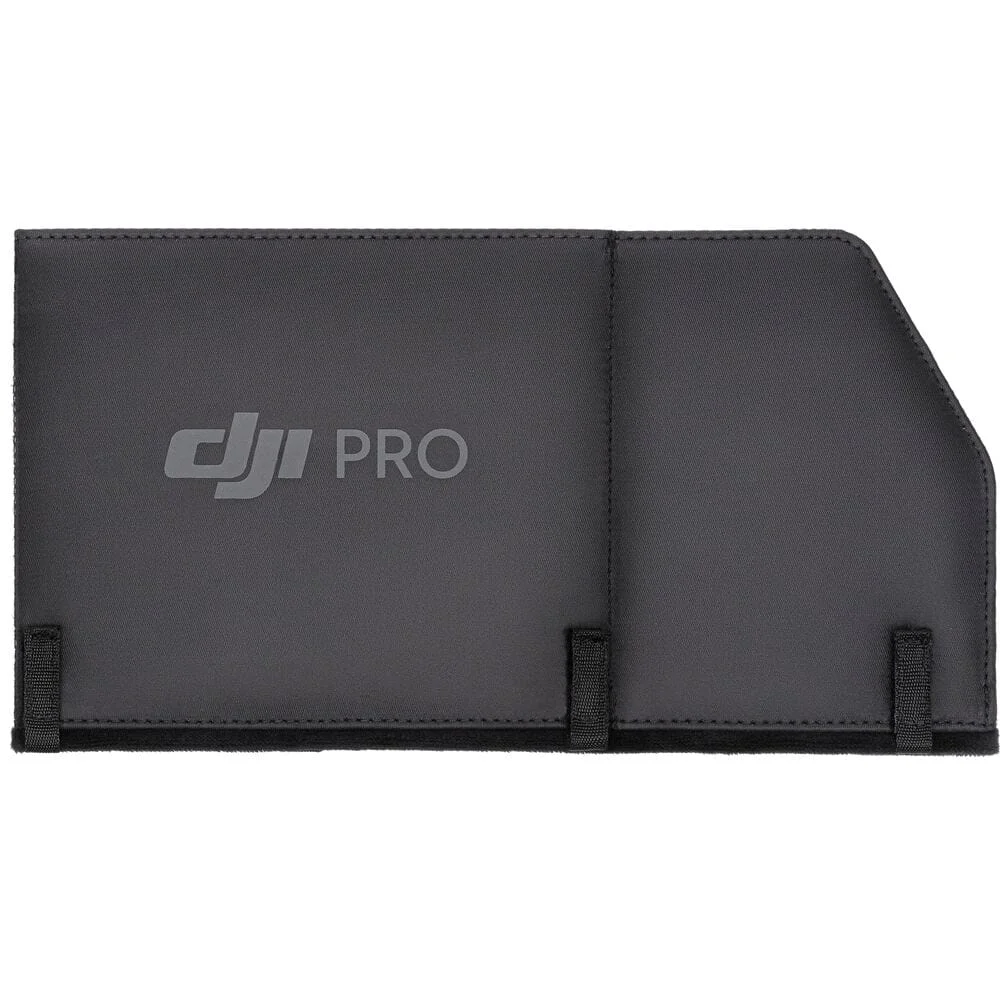

  3. Remote Monitor Hood
  4. WB37 Battery Adapter (TX)

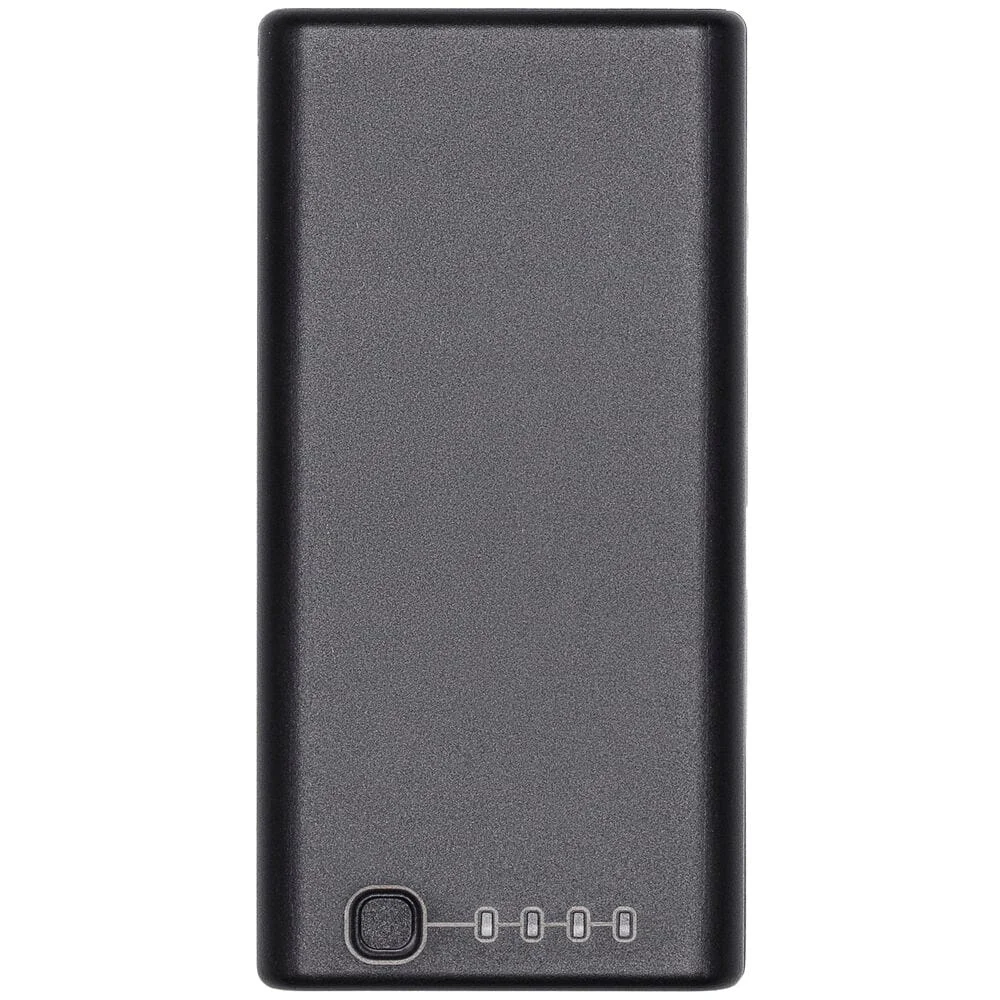

  5. WB37 Intelligent Battery
  6. WB37 Battery Charging Hub (USB Type-C)
  7. L-Series Battery Adapter (TX)
  8. L-Series Battery Adapter (RX)
  9. USB Type-C to LEMO Power Cable

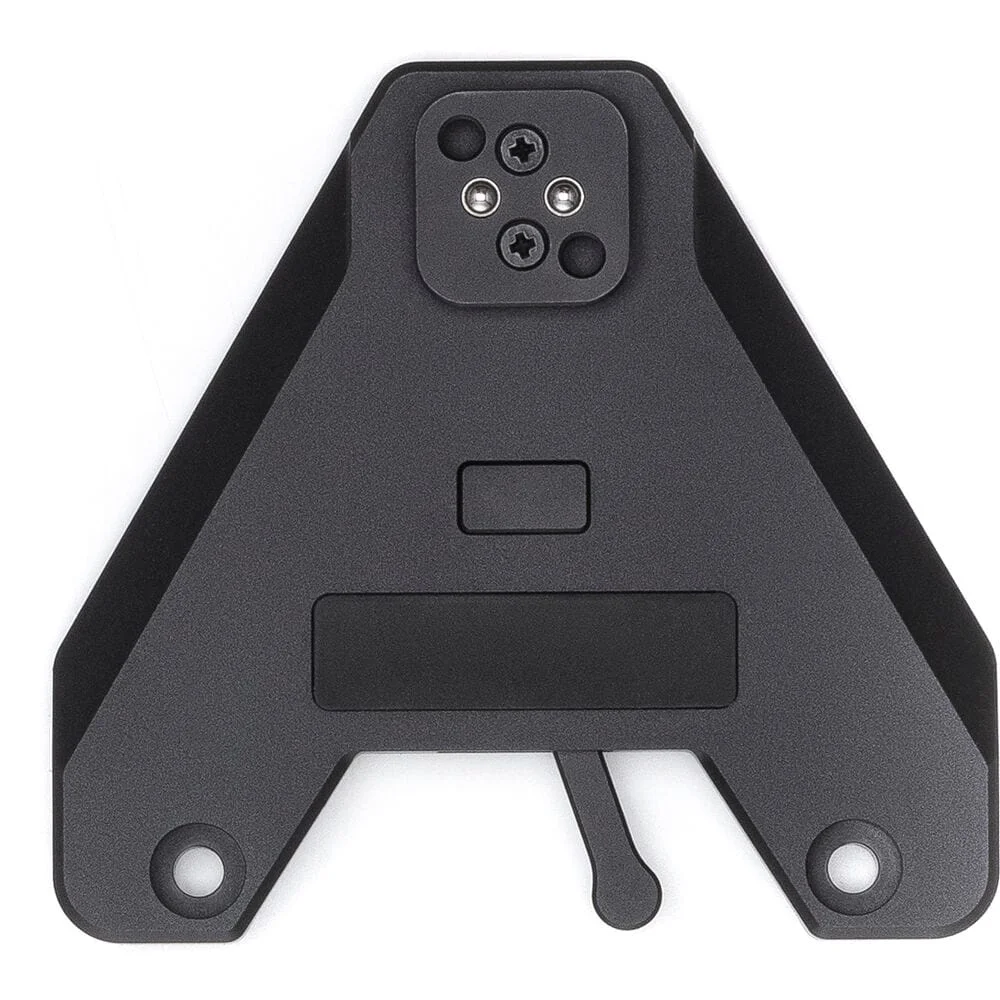

  10. RS Gimbal Mounting Plate
  11. USB Type-C Cable
  12. SDI Cable
  13. DC Power Cable
  14. DC to D-Tap Power Cable
  15. Installation Toolkit
  16. Protector Case
  17. Limited 1-Year Warranty

DJI Wireless Video Transmission Combo Specs

Display
Panel Type Receiver: LCD
Display Size 7.0″ / 17.8 cm
Display Size Receiver: 7.0″ / 17.8 cm
Resolution Receiver: 1920 x 1200
Aspect Ratio Receiver: 16:10
Touchscreen Yes
Image Controls False Color, Focus Peaking, Screen Markers, Waveform, Zebra
Video I/O Transmitter: 1 x HDMI 1.4 Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Input
Receiver: 1 x HDMI 1.4 Output
Receiver: 1 x BNC (3G-SDI) Output
Embedded Audio HDMI/SDI
Audio I/O Receiver: 1 x 1/8″ / 3.5 mm Headphone Output
Power Transmitter/Receiver: 1 x Barrel Input
Other I/O Receiver: 1 x USB-C 2.0 Input
Media/Memory Card Slot Single Slot: microSD/microSDHC
Encryption 256-Bit AES
Wireless
Wireless Range 3.7 Miles / 6 km (Line-of-Sight)
# of Channels 23
Channel Bandwidth 40 MHz
Frequency Range Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz
DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz
Latency 68 ms
RF Power < 33 dBm
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Format Support
Video Format HDMI/SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50/30/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
Audio Format 16-Bit 48 kHz PCM Audio
Wireless Video Compression Compressed
Power
DC Input Power 6 to 18 VDC
Battery Type Transmitter/Receiver: 1 x L-Series (Interchangeable Mount)
Power Consumption Transmitter/Receiver: 11 W
Mounting
Mounting Cold Shoe
Environmental
IP Rating None
Certifications CE, FCC
*as per Manufacturer
Operating Temperature 22 to 77°F / -10 to 45°C
General
Dimensions Transmitter: 5 x 3.4 x 1″ / 127 x 87 x 26 mm
Receiver: 8.4 x 5.3 x 2″ / 213 x 135 x 51 mm
Weight Transmitter: 12.3 oz / 350 g, Excluding Antenna
Receiver: 1.6 lb / 727 g, Excluding Antenna
Packaging Info
Package Weight 13.245 lb
Box Dimensions (LxWxH) 18 x 15.2 x 9.7″
