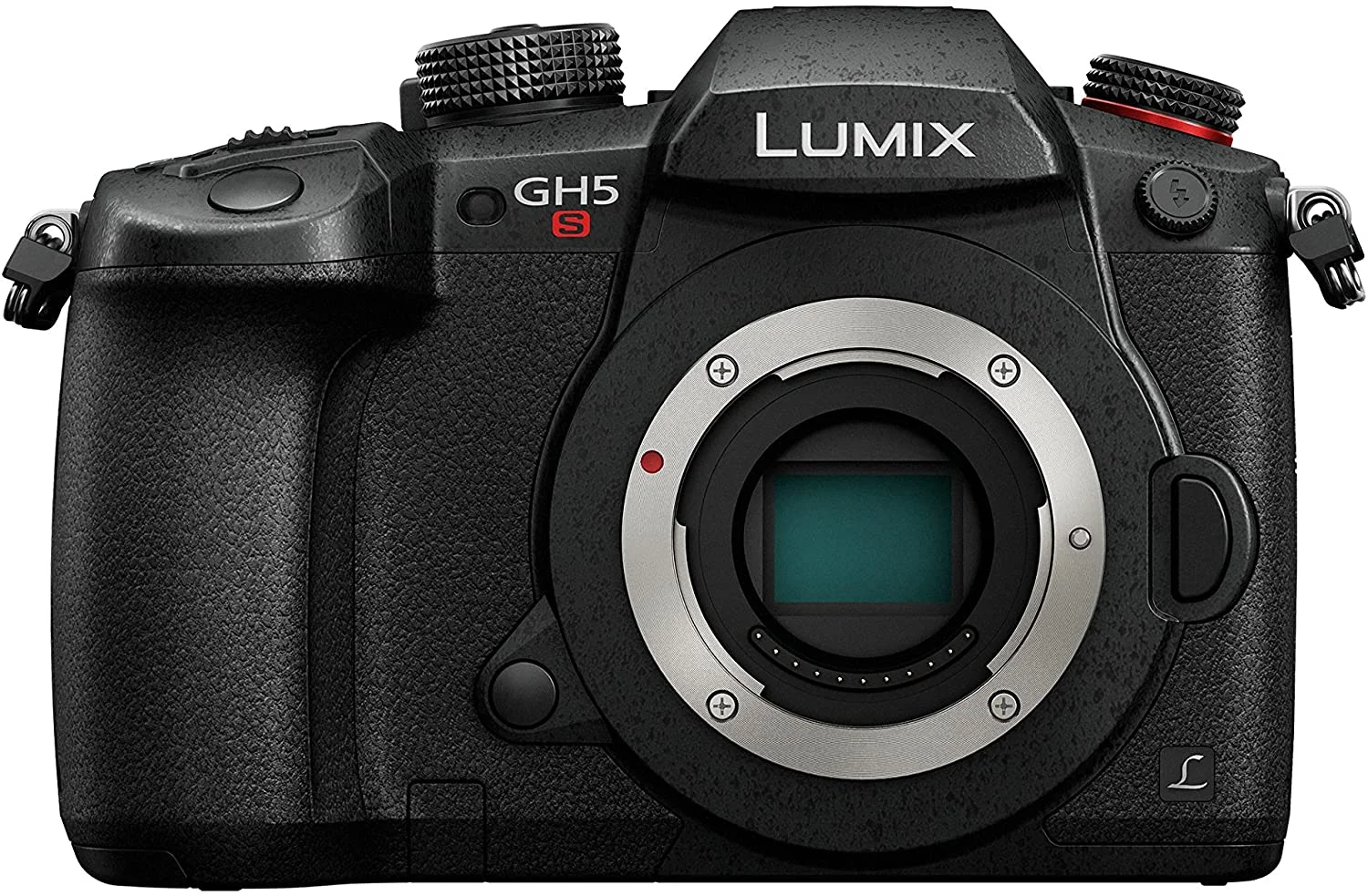

Panasonic Lumix DC-GH5S Mirrorless Micro Four Thirds Digital Camera
The Lumix GH5S offers extraordinary new heights in recording low-light and high-quality images that greatly expand the possibilities for video creators.
With 10.2MP Digital Live MOS Sensor with newly developed Dual Native ISO technologies combined with high-performance Venus Engine, the high sensitivity enhanced GH5S reveals subjects hidden in the dark.
Cinema 4K 60p/50p*, 4:2:2 10-bit video recording** and greater choice with multiple aspect ratios bring further enhancements to creative expression. The GH5S has been tuned specially to maximise post-production workflow efficiencies, including time code synchronisation to facilitate multi-camera shooting.
10.2 High-Sensitivity Dual Native ISO Technology (ISO160-51200)
The LUMIX GH5S achieves the highest-ever sensitivity and best image quality in LUMIX history. This is realised by combining the newly developed high sensitivity sensor with Dual Native ISO technology and the latest Venus Engine. Dual Native ISO is a revolutionary technology featured on Panasonic’s professional video cameras and offers the advantages of very high sensitivity while keeping noise levels low. Usually, with a conventional single native ISO, noise levels rise when sensitivity is increased. However, the newly developed image sensor implements dual circuits able to switch to high native sensitivity before gain processing. This means you can acheive beautiful footage with suppressed noise in low-lit situations.
Multi Aspect Ratio
The LUMIX GH5S sensor handles multiple aspect ratios; 4:3, 17:9, 16:9 and 3:2. Thanks to broad margins of effective pixels, focal length does not change in the aspect ratios.
Suppressed Rolling Shutter
Rolling shutter distortion, compared to the GH5, is suppressed by approximately 1.3x with high readout speeds when recording video or using an electronic shutter.
Cinema 4K 60p/50p* with Unlimited Recording Time
The original LUMIX GH5 made it possible to record 4K/60p and 4K/50p video on a DLSM camera. Now, to greatly extend your creative possibilities, the LUMIX GH5S takes this even further and, for the first time ever**, includes 4,096 x 2,160 Cinema 4K 60p/50p* video recording. Moreover, there is no limit*** to the recording time, not even when shooting FHD or 4K video.
- * Cinema 4K (C4K:4096 x 2160) resolution defined by Digital Cinema Initiatives (DCI).
- ** As of January 8, 2018 as a Digital Single Lens Mirrorless camera that complies with Cinema 4K (C4K: 4096 x 2160) resolution defined by Digital Cinema Initiatives (DCI). According to a Pansonic study.
- *** Subject to SD card capacity and battery life.
4:2:2 10bit* and 400Mbps All-Intra Recording
With internal recording of video in 4:2:2 10-bit* and an impressive 10.2-megapixel Digital Live MOS Sensor backed by a Venus Engine that handles digital signals at ultra-high speed, this camera’s image quality per frame is dramatically improved with faithful colour reproduction and grading. High bit-rate recording at 400Mbps, optimal for nonlinear editing, is also made possible.
- * 4:2:0 8-bit in C4K 60/50p and 4K 60p/50p recording on an SD Memory Card.
The LUMIX GH5S complies with 4K HDR video. The HDR (High Dynamic Range) is a mode to reproduce both bright parts and dark parts of an image, making the subject appear just as the human eye perceives it. The camera records video with a designated gamma curve compatible with ITU-R BT.2100, and you can now choose Hybrid Log Gamma (HLG) in Photo Style. A low bit-rate recording mode 4K HEVC for HLG is also available, which enables playback on AV equipment compatible with the HEVC compression format, such as Panasonic 4K HDR TVs.
The V-LogL is pre-installed in LUMIX GH5S. Log recording offers exceptional flexibility as well as a wider dynamic range for colour grading in the post-production process, and V-LogL features log characteristics with 12 stops of dynamic range. By default, the Look Up Table (LUT) data is Rec.709 standard. LUT can also be custom set for VLT format in camera. Then, with the V-LogL View Assist function, you can preview what your footage may look like after it’s been post-processing.
Shooting with an anamporphic lens and using the fullest extent of the 4:3 sensor the camera’s built-in 4:3 anamorphic mode makes it possible to create video in the cinemascope format. Stunning cinemascope videos are created in post productions using dedicated software but the de-squeezed cinemascope images can also be previewed while recording, or in playback, on the camera display.
VFR with FHD 240fps*
To elevate video expressivity even further, a variety of effects are available on the GH5S. The VFR (Variable Frame Rate) lets users record overcranked / undercranked video in C4K/4K (60fps, maximum 2.5x slower**) and FHD (240fps, maximum 10x slower**). The minumum frame rate for quick motion effects video is 2fps.
- * The degree of effects varies depending on the recording format and frequency, and the angle of view narrows if you select a frame rate with a number of frames 204 or more.
- ** In 24p playback.
Time Code IN/OUT and Line Input with 3.5mm MIC Jack
The LUMIX GH5S is now fitted with a TC IN/OUT terminal. By setting up TC synchronisation (through the flash synchro terminal and bundled BNC converter cable with optional BNC cable), it is easy to carry out non-linear timeline editing of footage shot with multiple cameras. For more flexible video production, LINE input is supported by a 3.5mm mic jack to enable sound input from an external audio device.
XLR Microphone Adaptor (Optional)
When shooting video, this adapter allows you to record high-grade stereo sound to the camera directly through a high-spec XLR mircophone. High-Res recording* (at 96kHz/24-bit) is also possible when shooting 4K video. Selecting between seperate MIC / LINE / CONDENSER MICROPHONES is also possible using the input switches on the control panel.
* In MOV only.
Battery Grip (Optional)
By using two batteries, one in the camera and the other in the grip, the DMW-BGGH5 extends battery life for longer shooting times. Robust as well as splash-* / dust- and freeze-proof the grip is easy to grasp even when shooting vertically, complementing the LUMIX GH5S body design.
* ‘Splash-proof’ is a term used to describe an extra level of protection this camera offers against exposure to a minimal amount of moisture, water or dust. Splash-proof protection does not garuntee that damage will not occur if the camera is subjected to direct contact with water.
Bluetooth 4.2 and Wi-Fi 5GHz (IEEE802.11ac)* / 2.4GHz (IEEE802.11b/g/n)
The LUMIX GH5S integrates Bluetooth 4.2 (Bluetooth Low Energy) and Wi-Fi connectivity for more flexible shooting, smoother remote control and faster image sharing with minimal power consumption. Connected to a smartphone or tablet, you can shoot, browse and share images remotely, as well as adding a GPS geotag. Furthermore, on a multiple GH5S camera shoot, your main camera settings can be transmitted wirelessly to others GH5S units. In addition to standard 2.4GHz Wi-Fi, this camera connects to tablets and other devices by the more secure, more stable and faster 5GHz (IEEE802.11ac)*.
*5GHz Wi-Fi is not available in some countries.
- The Wi-Fi CERTIFIED Logo is a certification mark of the Wi-Fi Alliance.
- The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under licence. Other trademarks and trade names are those of their respective owners.
The superior sensor saves super-detailed RAW files in 14bit RAW data to give photographers a wider range of expressive options.
The LUMIX GH5S realises -5EV luminance detection performance with Low Light AF. The Live View Boost function is also added so you can clearly monitor and compose your subject when shooting in dark situations. 20x Manual Focus Assist is also useful for night-sky photography, making it possible to focus on a single star by enlarging it.
0.76x 3,680k-dot OLED LVF
The LUMIX GH5S has a large LVF (Live View Finder) with a stunningly high magnification ratio of approximately 1.52x / 0.76x (35mm camera equivalent) and providing a smooth display at 120fps. The high-precision, high-speed OLED (Organic Light-Emitting Diode) display features 3,680k-dot high resolution and a 100% field of view. With an eyepoint of approximately 21mm, the LVF offers high visibility with comfort for users wearing glasses. It is always sharp and clear from a center all the way to the corners.

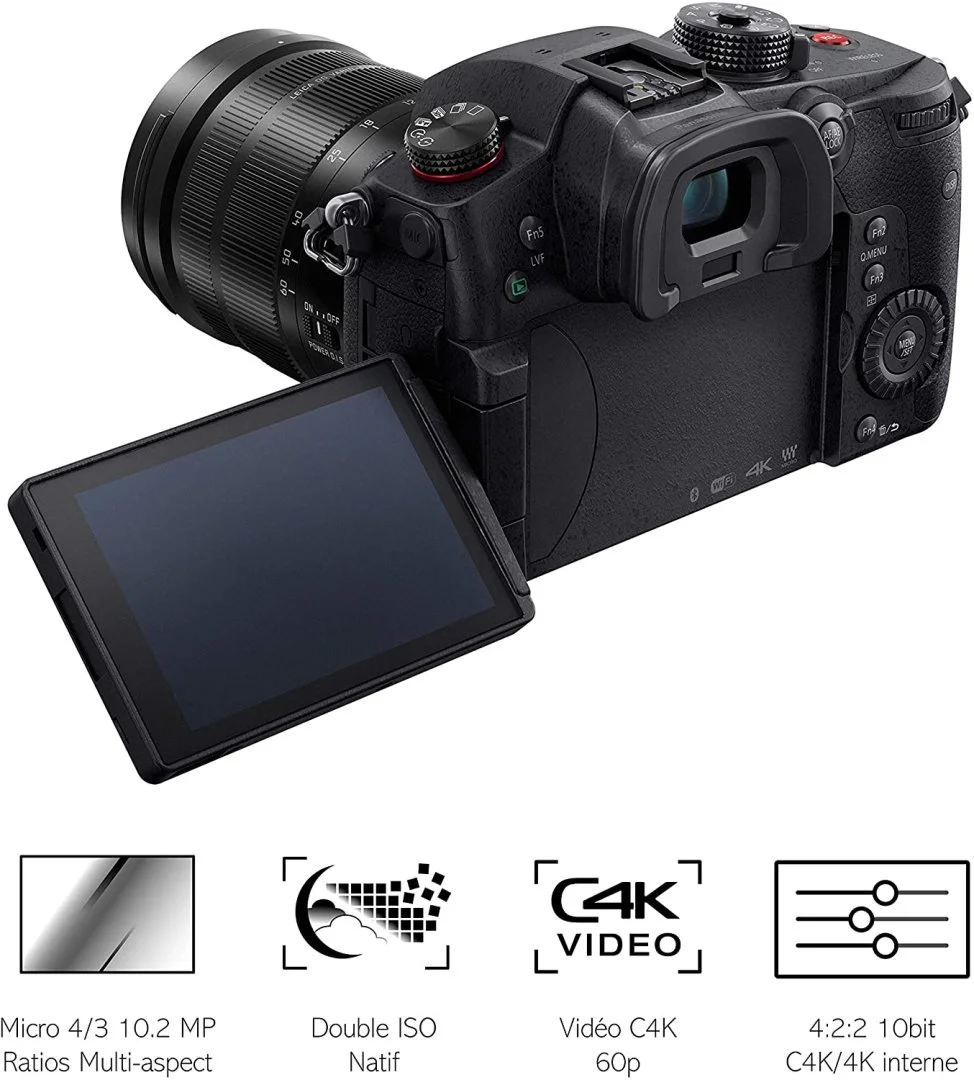

3.2 Free-Angle Touch Monitor
Adopting a static-type touch control system, the 3.2-inch free-engle rear monitor in 3:2 aspect with 1,620k-dot high resolution features an approximtely 100% field of view. It uses a pixel structure of RGB (Red / Green / Blue) and White to feature even higher visibility in sunny outdoor scenes. It tilts up and down by approximately 270-degrees to make shooting at either high or low angles even angles.
Splash-* / Dust- and Freeze-Proof Mg Body
Tough enough to withstand even heavy field use, the main structure is composed of a magnesium alloy die-cast front and rear frame. Secure construction and a sealing for every joint, dial, and button make the LUMIX GH5S not only splash-* and dust-proof but also freeze-proof down to -10°C(14°F).
- * ‘Splash-proof’ is a term used to describe an extra level of protection this camera offers against exposure to a minimal amount of moisture, water or dust. Splash-proof protection does not guarantee that damage will not occur if the camera is subjected to direct contact with water.
Durable Shutter Unit
The shutter unit is also durable for approximately 200,000 cycles. It also offers the highest shutter speed at maximum 1/8000 seconds, not only to capture spur-of-the-moment, fast moving subjects but also for impressive defocusing effects, for example using a high-speed lens with aperture fully open, even outdoors. An external flash can be synchronised with a maximum 1/250 second shutter speed.
